Feel sound move all around you to create a wide, detail-rich listening environment — thanks to 9 front and surround channels including rear speakers, 1 subwoofer channel and 4 up-firing channels.
Surround yourself in ultimate 3D sound. With Dolby Atmos wirelessly integrated into your soundbar, you can hear every distinct beat and pulse above and around you, just like the movies.
With Q-Symphony, AI separates voice and background sounds for playback through the optimal channel. Now you get crisper dialog and more immersive 3D surround sound, playing through your TV speakers and soundbar in complete synergy.
Enjoy stunning sound that's tuned to your room. The soundbar analyzes the space and adjusts the audio accordingly — even optimizing bass — for maximum clarity and immersion.

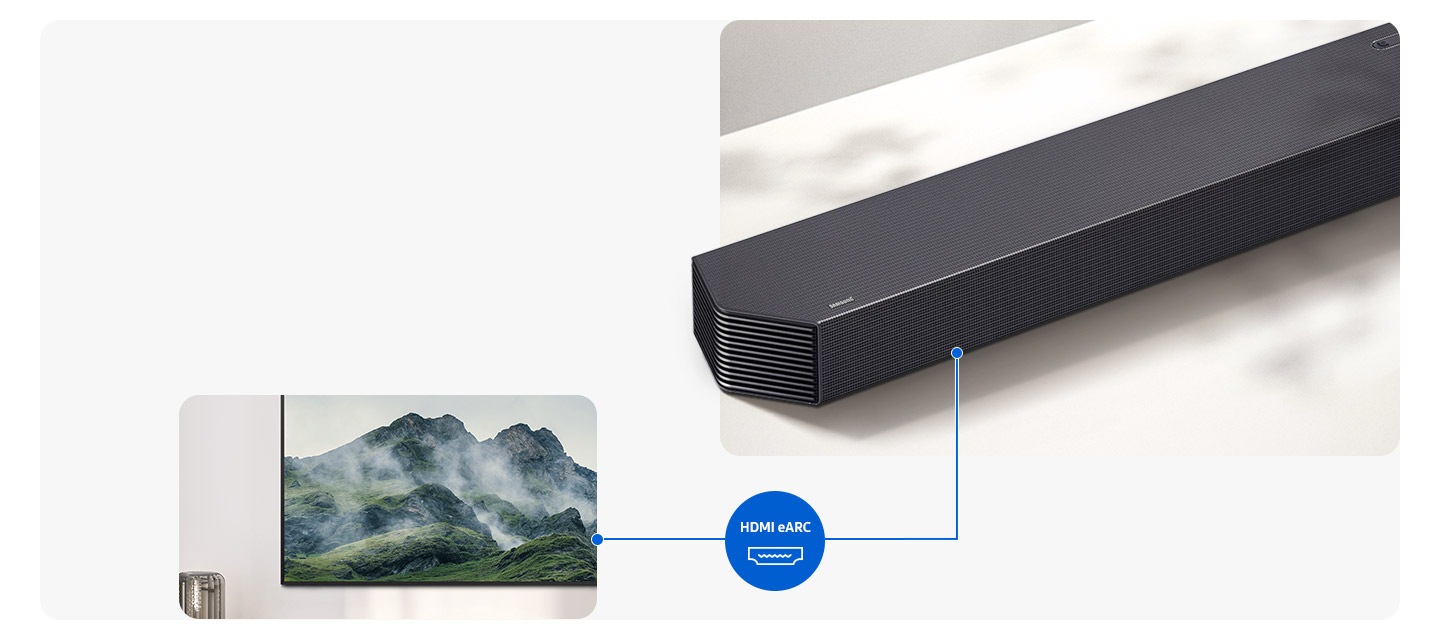

Your soundbar features HDMI eARC technology, allowing smooth sound delivery from your TV and its connected devices. Now you can enjoy 3D surround sound formats like Dolby Atmos in high quality.
Easily control your soundbar with the SmartThings app. Connect it to your mobile device via Wi-Fi to adjust sound settings, enable group play or access voice assistant and music streaming features.
| Sound system | 7.1.4 channel |
| Power supply | 100 - 240V AC, ~ 50/60Hz |
| Total speaker power output* (Max. @THD 1%) | 960 W RMS |
| Soundbar output power** (Max. @THD 1%) | 500 W |
| Surround speaker output power*** (Max. @THD 1%) | 2 x 80 W |
| Subwoofer output power**** (Max. @THD 1%) | 300 W |
| Soundbar transducer | 6x (44x80)mm racetrack drivers, 2x 1" (25mm) tweeters, 2x 2.75" (70mm) up-firing full-range drivers |
| Surround speaker transducer | 2x (44x90)mm racetrack drivers, 2x 2.75" (70mm) up-firing full-range drivers |
| Subwoofer transducer | 10” (260mm) |
| Networked standby power | < 2.0 W |
| Operating temperature | 0°C - 45 °C |
| Lithium battery | 3.635V, 6600mAh |
| Detachable surround speaker playtime | up to 10 hours (may vary according to content type and volume level) |
| Frequency response | 33Hz - 20kHz (-6dB) |
| Audio inputs | Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.) |
| Total soundbar dimensions (W x H x D) | 1203 x 52x 128mm / 47.4" x 2.0" x 5.0" |
| Soundbar dimensions (W x H x D) | 854 x 52 x 128mm / 33.6" x 2.0" x 5.0" |
| Detachable surround speaker dimensions (each) (W x H x D) | 189x 52 x 128mm / 7.4" x 2.0" x 5.0" |
| Subwoofer dimensions (W x H x D): | 325 x 400 x 325 mm / 12.8" x 15.7" x 12.8" |
| Soundbar weight | 5.5kg / 12.1 lbs |
| Detachable surround speaker weight (each) | 0.9 kg / 2 lbs |
| Subwoofer weight | 9.1 kg / 20 lbs |
| Packaging dimensions (W x H x D) | 980 x 398 x 495 mm / 38.58" x 15.67" x 19.49" |
| Packaging Weight | 22.6kg / 49.8lbs (EMEA/UK/AU/NZ);19.9kg / 44.4lbs (Others) |
| USB port | Type A |
| USB rating | 5V DC, 0.5A |
| Supporting file formats | mp3 |
| MP3 codec | MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 |
| MP3 sampling rate | 16 - 48 kHz |
| MP3 bitrate | 80 - 320 kbps |
| Bluetooth version | v5.3 |
| Bluetooth profile | A2DP v1.3, AVRCP v1.5 |
| Bluetooth transmitter frequency range | 2400 MHz – 2483.5 MHz |
| Bluetooth transmitter power | <15 dBm (EIRP) |
| Wi-Fi network | IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz) |
| 2.4G Wi-Fi transmitter frequency range | 2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels) |
| 2.4G Wi-Fi transmitter power | < 20 dBm (EIRP) |
| 5G Wi-Fi transmitter frequency range | 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz |
| 5G Wi-Fi transmitter power | 5.15 - 5.25GHz <23dBm, 5.25 - 5.35GHz & 5.470 - 5.725GHz <20dBm, 5.725 - 5.825GHz <14dBm (EIRP) |
| 2.4G wireless transmitter frequency range | 2406 - 2474MHz |
| 2.4G wireless transmitter power | <10dBm (EIRP) |
| Note | Band 5.6 - 5.64 GHz will be disabled when shipped to Australia / New Zealand. |
| HDMI video input | 3 |
| HDMI video output (with Enhanced Audio Return Channel, eARC) | 1 |
| HDMI HDCP version | 2.3 |
| HDR pass through | HDR10+, Dolby Vision |
